ACS-1 w/ORP Pentair ActivTapp Commercial Rinse Ozone Generator CD2140BP
ACS-1 w/ORP Pentair ActivTapp Commercial Rinse Ozone Generator CD2140BP
SKU:ACS-1 w/ORP
Couldn't load pickup availability
Click here to view available coupons and save on your order!
Shipping insurance is available at checkout — we strongly recommend purchasing it to protect your order during transit. You can request NOT to take the insurance on this item, but in that case, all sales are final. If there is any damage, we will work with you, but we highly recommend you take the insurance.
Superwater.com is an authorized Pentair Everpure dealer with over 32+ years of experience — Please feel free to call us with any questions you may have.
Please note: If you need expedited shipping, please call us before placing your order. Orders CAN NOT be cancelled once they have been processed. This is a special order item and can not be cancelled at all. Please allow a minimum of 4 to 6 weeks for shipment. These units are made to order.
Good ozone protects us from harmful UV radiation from the sun. Another form of ozone we are familiar with is a component of air pollution found in the lower atmosphere. We call that bad ozone. Bad ozone is formed when carbon dioxide given off by cars and industrial fumes reacts with sunlight (UV) at ground level.
Let's break it down…the formation of bad ozone is created by nitrogen oxides (NOx), methane (CH4), carbon monoxide, and sunlight. About 95 percent of these chemicals come from human activity from the burning of coal, gasoline, and oil in motor vehicles, homes, industries, and power plants. The result is smog, the air pollution we see.
There is a huge misconception that ozone is smog, but it's not. When smog levels are discussed, ozone is targeted because it is relative to smog conditions and is much easier to measure than other components that smog form. Ozone is actually there to help eliminate smog.
Ozone Benefits:
Ozone is an oxidizer and disinfectant commercially available for water and air treatment. It has been approved by the FDA, USDA, and the EPA as antimicrobial disinfectants. Ozone systems require only cold water, reduces the need for chemicals, and are made on-site, on-demand.
How is Ozone used for Water & Air Purification? When used correctly, ozone is very effective for many applications, especially at high concentrations. It must be made on-site and used immediately. Ozone generators produce ozone first by compressing ambient air, then separating it and concentrating the oxygen. The oxygen runs through a high-voltage device, called a corona, essentially "lightning in a bottle." The generator then "injects" the gaseous ozone into the water using negative pressure or a vacuum.
Disinfection – Reduces bacteria and the inactivation of viruses and cysts.
Oxidation of Inorganics – Precipitates iron, manganese, sulfides, nitrites, and organically bound heavy metals.
Oxidation of Organics – Organics causing color, taste, and odor problems, reducing some detergents, phenols, VOCs, turbidity control, and micro flocculation of soluble organics.
It is a more innovative alternative to salt, chlorine, and other chemicals. It can oxidize and reduce microorganisms such as bacteria, fungus, and viruses in water faster than chlorine and faster than bromine. Ozone reduces odor and color. It can also be used for the flocculation of organic material, which simplifies mechanical filtration. It is generated at the point of use and then reverts back to oxygen.

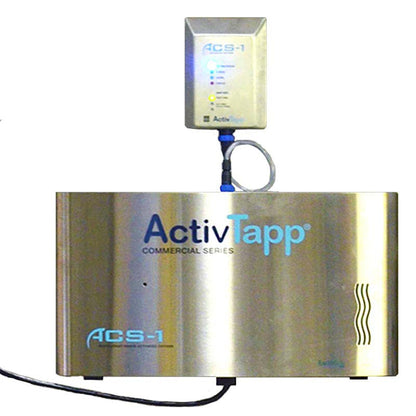

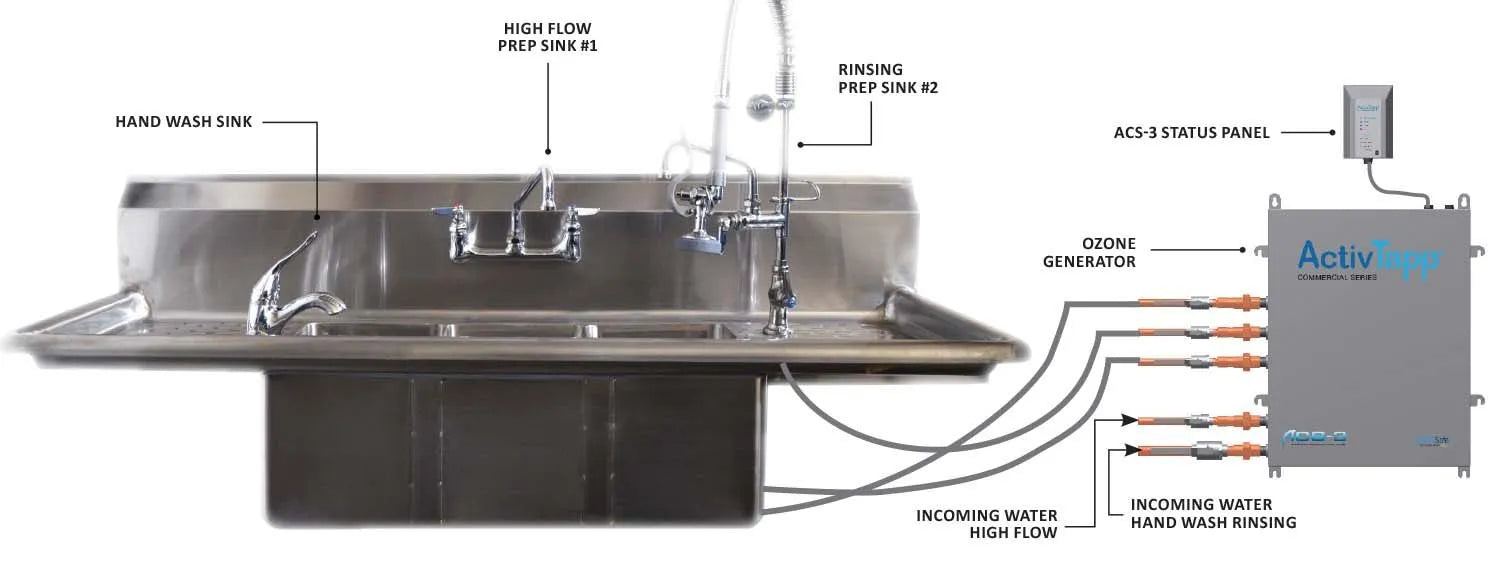

The (Older Pentair Model Number 340-72041) Pentair ACS-1 w/ORP ActivTapp ACS-1 # CD2140BP is a commercial ozone system that operates with your faucet and sink. It automatically turns on when the water flows, infusing ozone into your cold rinse water. Rinsing your food products with ozonated water adds another dimension of safety to your food preparation process.
This commercial ozone system is an environmentally friendly device allowing you to provide water with an infused potent oxidizer to any faucet, sink or water consuming product you use. Using only a small amount of electricity, the ACS takes oxygen from the air and converts it into ozone (O3), a very powerful natural oxidizer. Once the ozone is injected into the cold water line, it gives the ordinary water the ability to deliver an oxidizer to any surface it comes in contact with.
With the optional ORP monitor, the oxidation potential of the water is measured and displayed on the status display for the end user. This provides proof that an oxidizer has been injected into the water. A safe natural oxidizer, such as ozone, can provide effective disinfection of fruits, vegetables, and any other surface the oxidizer comes in contact with.
There are two Methods to Generate Ozone:
- Corona Discharge (CD)
- Ultraviolet (UV) Light

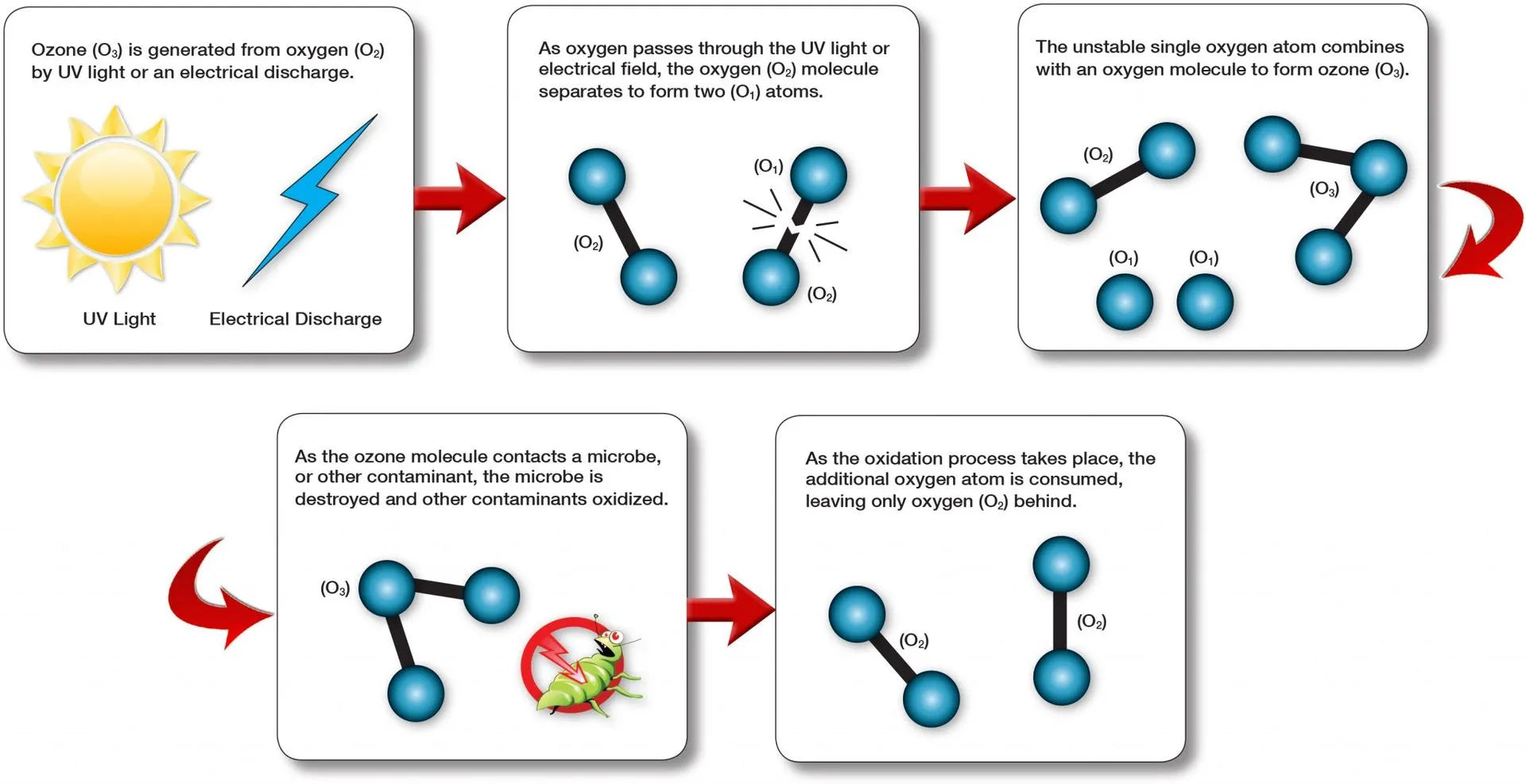

Corona discharge generators are much more sophisticated than UV and can generate much higher levels of ozone. Ozone passes a stream of dry air or oxygen through a high voltage field called a corona discharge, where oxygen in the stream converts to ozone. Ozone generates at the point of application.
UV ozone generators use a light source that generates a narrow band of ultraviolet light. Standard UV ozone generators are less expensive and produce ozone with a concentration of about 0.5% or lower. UV also requires the air (oxygen) to be exposed to the UV source for a more extended amount of time. UV generators are less effective for use in situations that deal with rapidly moving air or water streams.
Ozone Safety
A properly designed and installed ozone system will not expose anyone to irritating ozone concentrations at low levels. However, ozone, like any other potent oxidizing agent, can be harmful if not handled properly.
OSHA – Occupational Safety & Health Administration
OSHA has set specific guidelines for using ozone in the workplace and based on time-weighted averages. Ozone levels should never exceed the following standards: 0.10 ppm (parts per million) for an 8-hour work shift.
• 0.2 ppm for no more than 2 hours exposure
• 0.1 ppm for 8 hours per day exposure doing light work
• 0.08 ppm for 8 hours per day exposure doing moderate work
• 0.05 ppm for 8 hours per day exposure doing heavy work
Ozone Material Safety Data Sheet (MSDS)
The Ozone Material Safety Data Sheet is an official document that includes the properties of ozone; the physical, health, and environmental health hazards; protective measures; and safety precautions for handling, storing, and transporting ozone.
Safety Monitoring Equipment
All ozone monitors are used with ozone generators. They measure the concentration of ozone levels at the permissible exposure limit according to OSHA guidelines. They can shut down the ozone output immediately if necessary.
1. ClearWater Tech's Ozone Monitor
2. Aeroqual Ambient Ozone Monitor
3. Analytical Monitors (ATI)
4. Ozone Safety Badges are a low-cost method that can detect the presence of ozone by forming a color change in the form of an "exclamation mark" which warns the presence of ozone.
5. Ozone Respirators can be a simple paper mask or a gas mask that offers complete protection against any potential adverse effect of overexposure to ozone.
Features
Ozone output: 300 mg/hr
Inlet pressure: 40-100 PSI
Power: 120V / 220V
ORP built-in
Simple installation and access for servicing
Inlet/outlet manifold constructed of schedule 80 PVC
Custom designed PCB to control ozone, indicator lamps, LEDs, and track time to service
Flow switch to sense water flow
Stainless steel construction built for commercial restaurant environment
Leak detection with audible alarm and service light
Service light illuminates after predetermined number of hours of operation
Lamp on front cover for Power on (green), Ozone on (blue), Service Required (red)
Easy visual monitoring of system's functionality
Water by-pass plumbing manifold for quick and easy product swap out for fast in-kitchen service
Applications:
Fruit & vegetable rinse systems
Surface sanitization
Seafood processing
Butcher blocks
Hand wash
Washcloth rinse
Food processing
Meat processing
Poultry processing
Package sanitization
Process water purification
Benefits:
100% chemical free
Real-time proof of delivery (POD)
Improves food safety and quality control
Produced on site, nothing to store or transport
Can extend shelf life
Exceeds OSHA safety guidelines
Organic and sustainable
UL and NSF pending
Specifications:
Model: ACS-1 w/ ORP
Capacity: 1-4 GPM
Outlets: 1
Inlet Water Pressure: 40-100 PSI
Ozone Level: 0.5 PPM @ 4 GPM
Ambient Level: less than 0.08 PPM
Inlet/Outlet Connection: 3/4" MNPT
Input Power: 90-264 VAC, 50-60 Hz, 50 Watts
Dimensions Overall: 17.25"w x 10"h x 3"d
Dimensions Mounting: 16" wide
Weight: 7 lbs
Listings (pending): UL, NSF
Alternate Part Numbers:
ACS-1 w/ORP | 340-72041 | 34072041 | CD2140BP | CD2140-BP
